Tuf-Lok™ Ring Grip Tube Couplings
Series 788

Dimensions & Specifications

Tuf-Lok Ring Grip Tube Coupling Series 788 Drawing

Gaskets

  • Black EPDM
    Tuf-Lok coupling standard gasket, rated to 230° F (110° C)

  • White Buna-N
    Tuf-Lok coupling standard food grade gasket, rated to 180° F (82° C)

  • White Silicone
    Tuf-Lok coupling standard high temperature gasket (also food grade), rated to 350° F (176° C)

    		•
    Tuf-Lok Ring Grip Tube Couplings Series 788

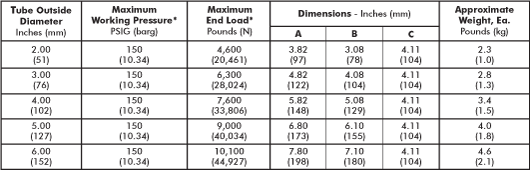

    Tuf-Lok Ring Grip Tube Couplings Series 788 Specifications
    * Working pressure and end load are total, including equivalent loads based on proper coupling assembly.

    Specifications subject to change.
